BTI is the official distributor of Alimex in Israel. Alimex develops and manufactures world class precision Aluminum cast plates. Alimex, the inventor of the cast plate, produces Aluminum Precision plates in the highest quality by using advanced technology and innovative solutions. Our collaboration with Alimex combines German expertise alongside Israeli industry knowledge, to create top solutions for the most important industries of the future.

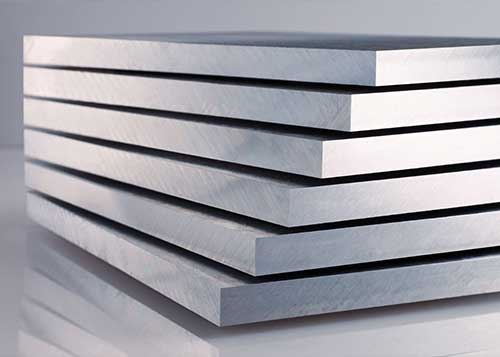

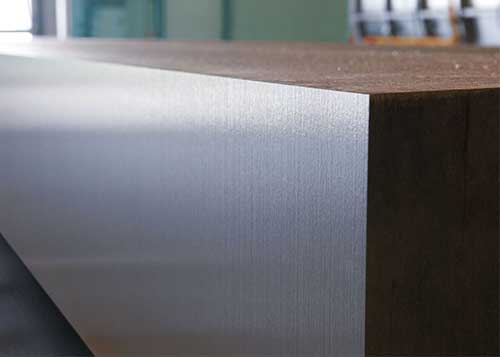

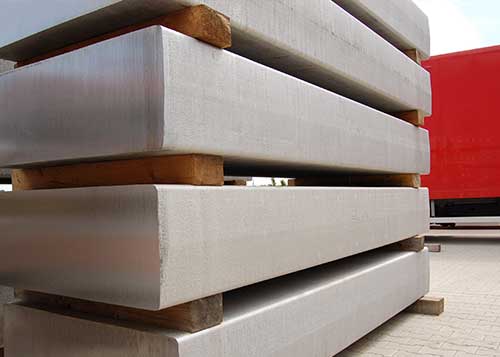

ACP 5080 is a custom made cast Aluminum Plate manufactured using the “cast block” technique. The plates is usually grinded from both sides to achieve higher tolerances. It has a unique grain structure, and can be machined pretty easily. Using a unique thermal treatment, the material becomes homogenous and stress-relieved, while maintaining dimensional stability.
ACP 5080 is mainly recommendedfor use in:
| Mechanical Properties | |
|---|---|
| Tensile Strength Rm | 240 – 290 MPa (N/mm2) |
| 0.2% Yield Strength Rp 0.2 | 110 – 130 MPa (N/mm2) |
| Elongation A 5% | 15 |
| Brinell Hardness HB | 70 |
| Physical Properties | |
|---|---|
| Specific Weight | 2.66 g/cm3 |
| Thermal Conductivity | 110 – 140 W/(mK) |
| Electrical conductivity | 16-19MS/m (m/Ωmm2) |
| Modulus of Elasticity | ~70,000 N/mm2 |
| Expansion | 24.2 * 10-6/K |
| Tolerances | |
|---|---|
| Surface | Sawn on all sides |
| Thickness | +/-0.1 mm (closer on request) |
| Width for plates | 0/+10 mm |
| Length for Plates | 0/+15 mm |
